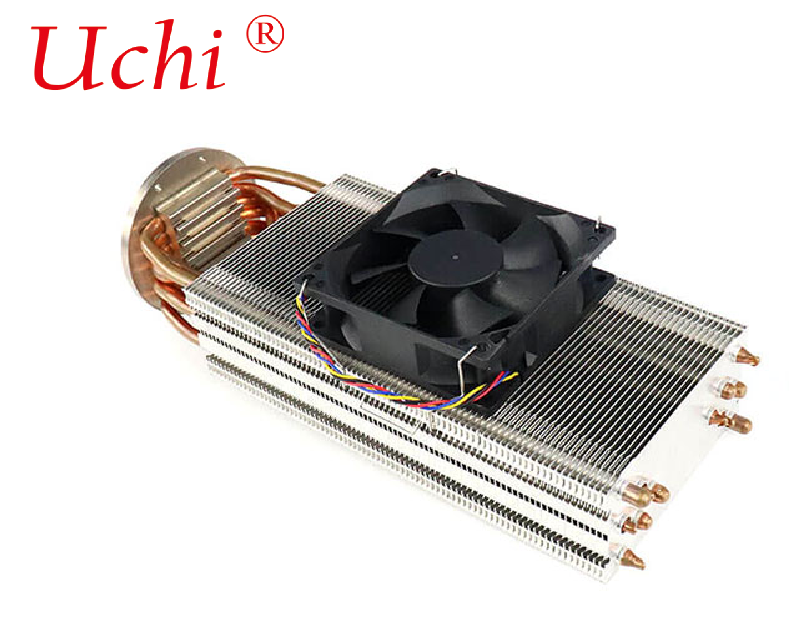

LED Heat Sink With Fan (Cooling Module) Liquid Cooling Plate

Name: LED Heat Sink With Fan Cooling Module Liquid Cooling Plate
Brand: UCHI
Price: 1 USD

Brand Name : UCHI

Certification : UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL

Place of Origin : Dongguan，Guangdong,China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union,Money gram

Supply Ability : 5000,000,000PCS Per Month

Delivery Time : 5-7 days

Packaging Details : Bulk

Coolingsurface Treatment : anodized without coloringHeat

Body Material : Aluminum

Heat Dissipation Power : ≥ 100W

Article No : liquid cooling plate 14

Thermalconductivity : Copper: ~400 W/m·K, Aluminum: ~205 W/m·K

Product Dimension : Can be customized

Packing : PE Bag Carton

Tolerance : 0.01-0.05mm

Corrosionresistance : High, with protective coating

Bearing : Alloy Bearing

Thermal Dissipation Power : 2000W

Contact Now

LED Heat Sink with Fan (Cooling Module)

Simply put, it is an integrated cooling solution consisting of LED chips, an aluminum heat sink body and a cooling fan. It adopts active forced air cooling, delivering far higher heat dissipation efficiency than ordinary passive aluminum heat sinks, and is suitable for high‑power LEDs.

Product parameters of LED Heat sink with Fan

Material: Al 1100

Size:9.3*7.5*25.5cm mm

Weight: 0.614kg

Technology: Stamping

Feature: Higher cooling ability and good conductivity

Surface treatment: Oil-cleaning passivation

Heat cooling power: 300W

Product advantage of LED Heat sink with Fan

Every electrical and electronic component in a circuit generates some amount of heat while the circuit is executed by providing power supply. Typically high-power semiconducting devices like power transistors and the opto electronics such as light emitting diodes,lasers generate heat in considerable amounts and these components are inadequate to dissipate heat, as their dissipation capability is significantly low.

Due to this, heating up of the components leads to premature failure and may cause failure of the entire circuit or system’s performance. So, to conquer these negative aspects, heat sinks must be provided for cooling purpose.

I. Structural Composition

Heat sink body: Aluminum extrusion/finned heat sink with anodized surface to expand heat dissipation area
Cooling fan: DC silent fan (12V/24V), exhausting air outward or blowing air inward for forced convection
Thermal interface layer: Thermal grease/thermal pad, connecting LED chips and aluminum PCB
Mounting accessories: Screws and buckles, compatible with flood lights, high‑bay lights, stage lights and grow lights

II. Core Features

Active cooling with fast temperature reduction and low thermal resistance; supports high‑power LEDs from 50W to over 300W
Compared with pure aluminum heat sinks, it features smaller size, longer chip service life and less light attenuation under the same power
Temperature‑controlled models support automatic start/stop or speed regulation according to temperature, with lower noise and power consumption
Drawbacks: Fan noise, power supply required, and dust‑proof maintenance needed for long‑term use

III. Common Application Scenarios

High‑power LED flood lights, high‑bay lights, stadium lights

Plant grow lights, UV curing lights, stage PAR lights

Automotive LED spotlights, industrial lighting, high‑brightness outdoor lighting

IV. Selection Guidelines

Power matching: Specifications of heat sink and fan shall be no less than the actual power of the LED
Voltage: Fans commonly use 12V or 24V, matching the LED driver voltage
Noise: Choose silent fans for household/indoor use, and high‑air‑volume fans for industrial use
Protection level: Select waterproof fans and waterproof aluminum housings for outdoor applications
